  In Stock - Immediate Shipping

USD $1,150.00 (exc. Tax)

Single WJ 1×10 Powered Cabinet

4 ohm Powered 650 Watt Bass Cabinet. State of the art D Class switch mode 2 channel power amp. Channel 1 Bass-Mid: 500 Watts RMS @ 4 ohms, Channel 2 Tweeter: 150 Watts RMS @ 8ohms. Has the same driver & tweeter used in the 2×10 except the driver is 4 ohm. Bass cabinet for bass guitar players, upright bass & double bass players.

Digital Dsp For Powered Bass Cabinets

Wayne Jones Audio powered bass cabinets now feature DSP input and crossover.

Great for small rooms & double bass players.

Visit Wayne Jones Audio for more Details, Reviews & Photos ►

-

Description

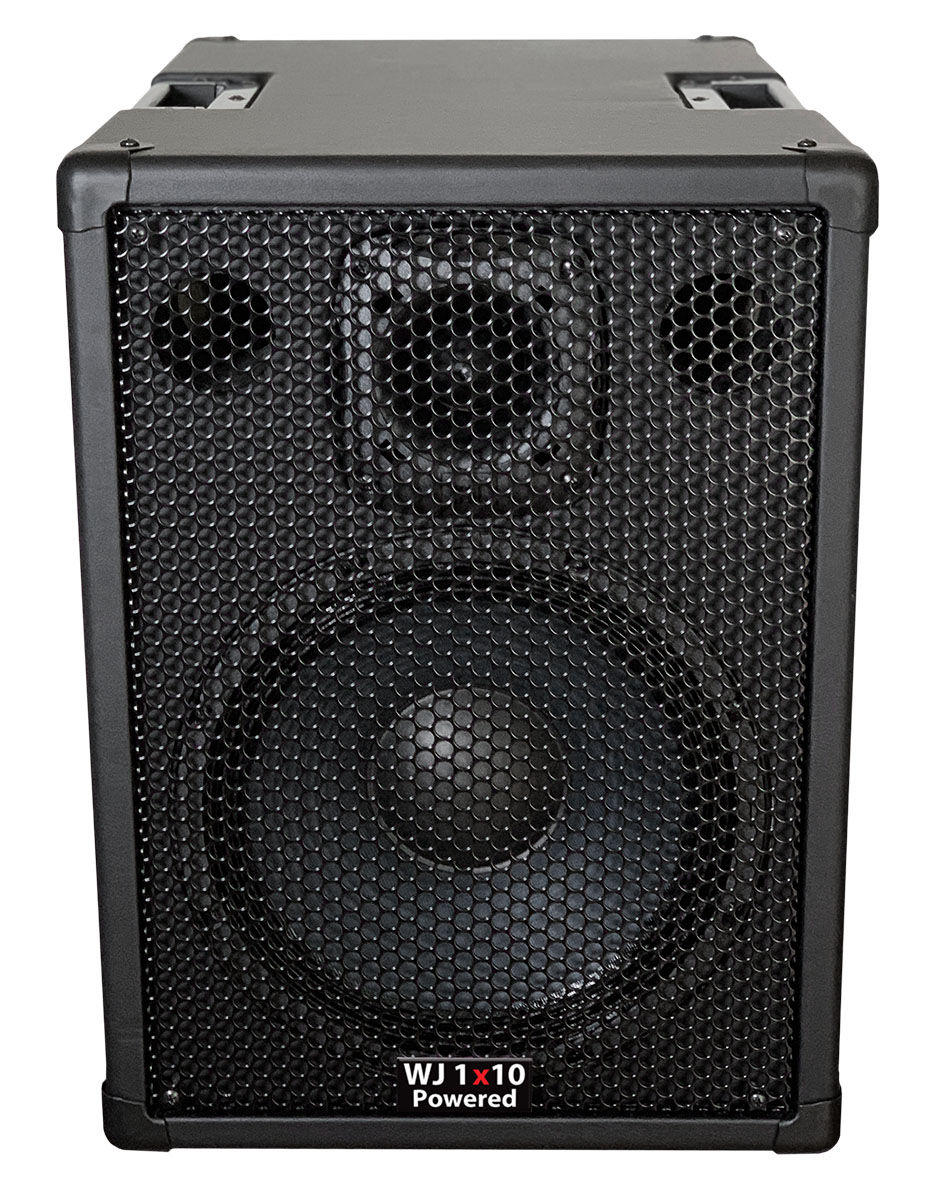

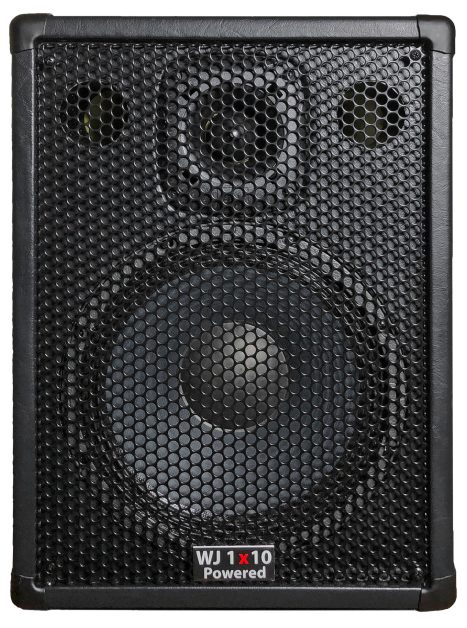

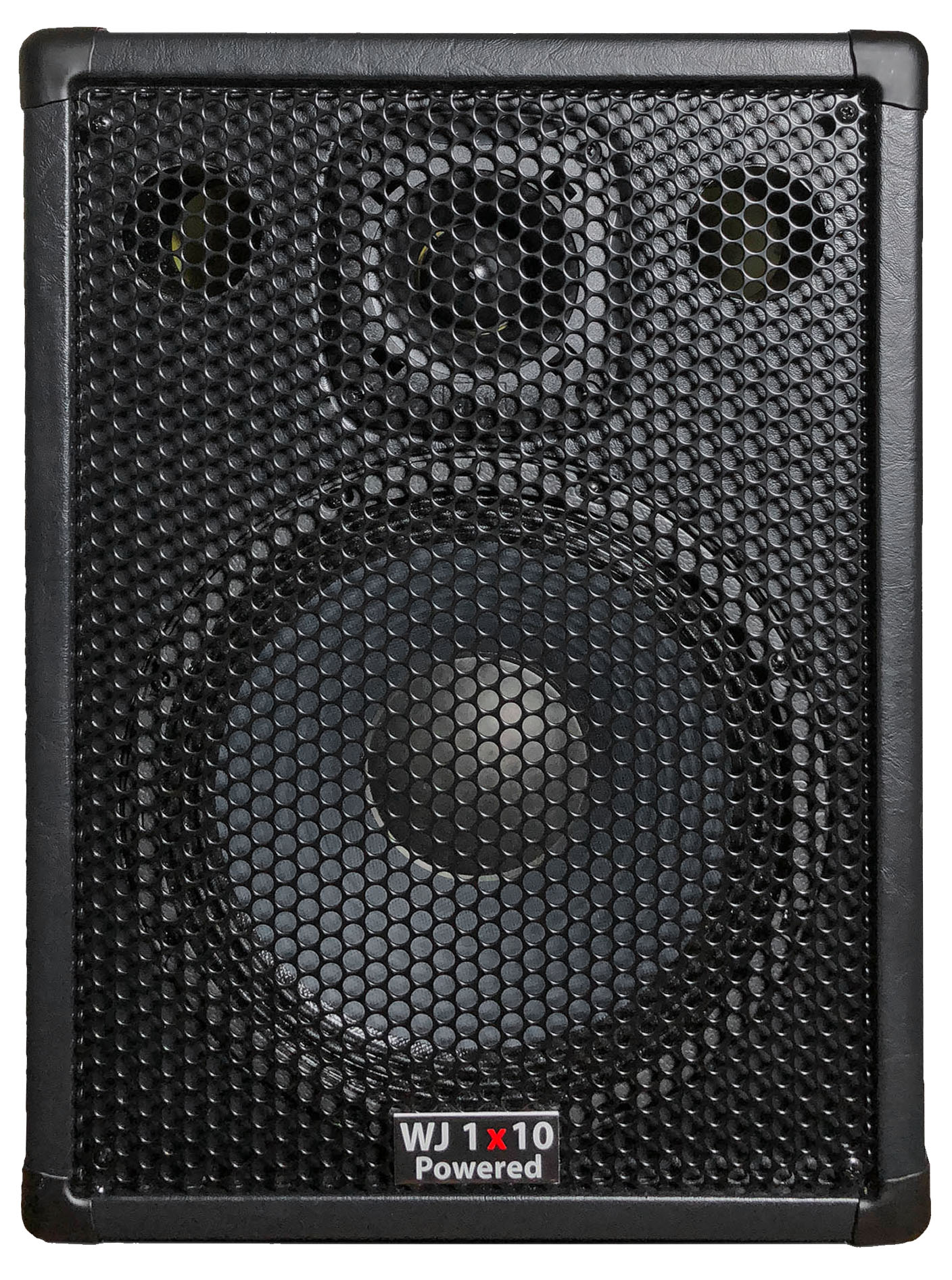

Single WJ 1×10 Powered Cabinet

Made to Order

4 ohm Powered 650 Watt Bass Cabinet. State of the art D Class switch mode 2 channel power amp. Channel 1 Bass-Mid: 500 Watts RMS @ 4 ohms, Channel 2 Tweeter: 150 Watts RMS @ 8ohms. Has the same driver & tweeter used in the 2×10 except the driver is 4 ohm. Bass cabinet for bass guitar players, upright bass & double bass players.

Digital Dsp For Powered Bass Cabinets

Wayne Jones Audio powered bass cabinets now feature DSP input and crossover.

Using SoundID Reference measure your room acoustics and store the calibrated result directly within the cabinet. Access when required via a switch on control panel. This is ideal for recording studios when there is a preference for recording cabinets with microphones, residency venues and frequented rehearsal studios.

The DSP technology used has been developed with our award winning range of Wayne Jones Audio Studio Monitors in conjunction with SoundID Reference from Sonarworks.

Great for small rooms & double bass players.

They are so light but sound so full & clear, 35 Hz- 20 KHz
Besides all that you can pop them up on stands & use them for monitors in your home studio.



Cabinet Specs:

  • Power: 650 Watts RMS powered
  • Channel 1 Bass-Mid: 500 Watts RMS @ 4 ohms
  • Channel 2 Tweeter: 150 Watts RMS @ 8ohms
  • Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
  • Power Amp frequency: 20 Hz – 20 kHz
  • Cabinet tuning: 35 Hz to 20 kHz
  • Cabinet response: Half loudness Graphed down to 28Hz
  • HPF switch at 30 Hz
  • Driver: Custom made Wayne Jones 10” driver with Aluminium cast frames, specially formulated Kevlar impregnated eucalyptus pulp cone.
  • Voice coil: 3″
  • Magnet: Massive Ferrite
  • Tweeter: JBL, 1.75″ Voice coil
  • Crossover point – 3.5KHz
  • Control plate: Black Steel
  • Universal Mains Power in: Standard IEC

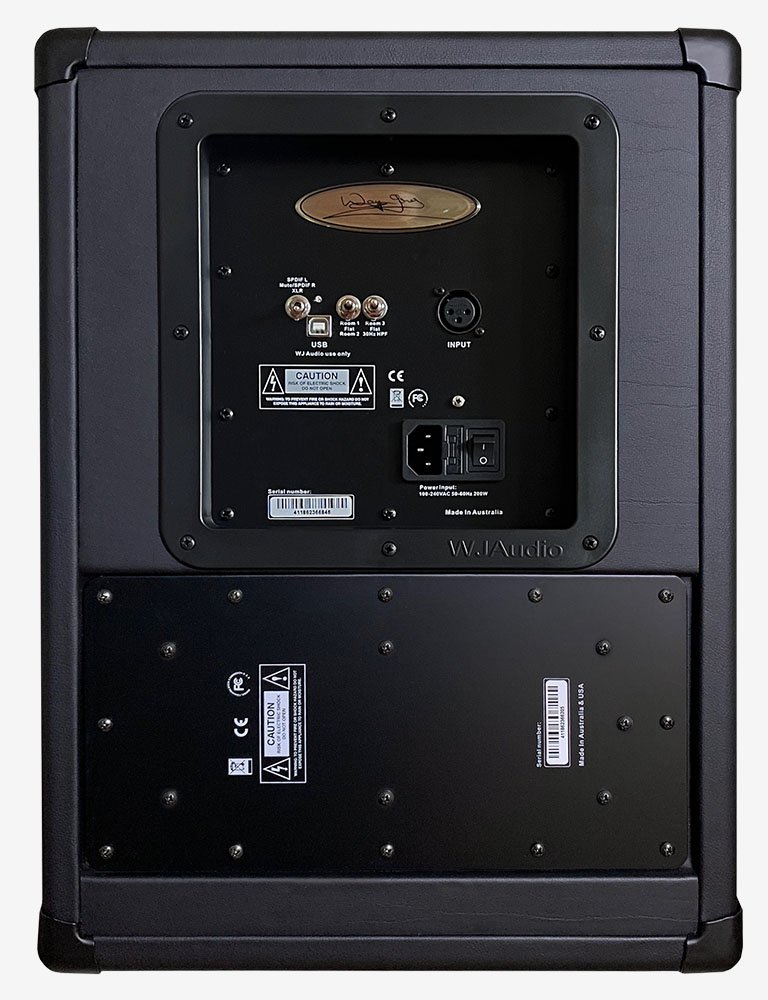

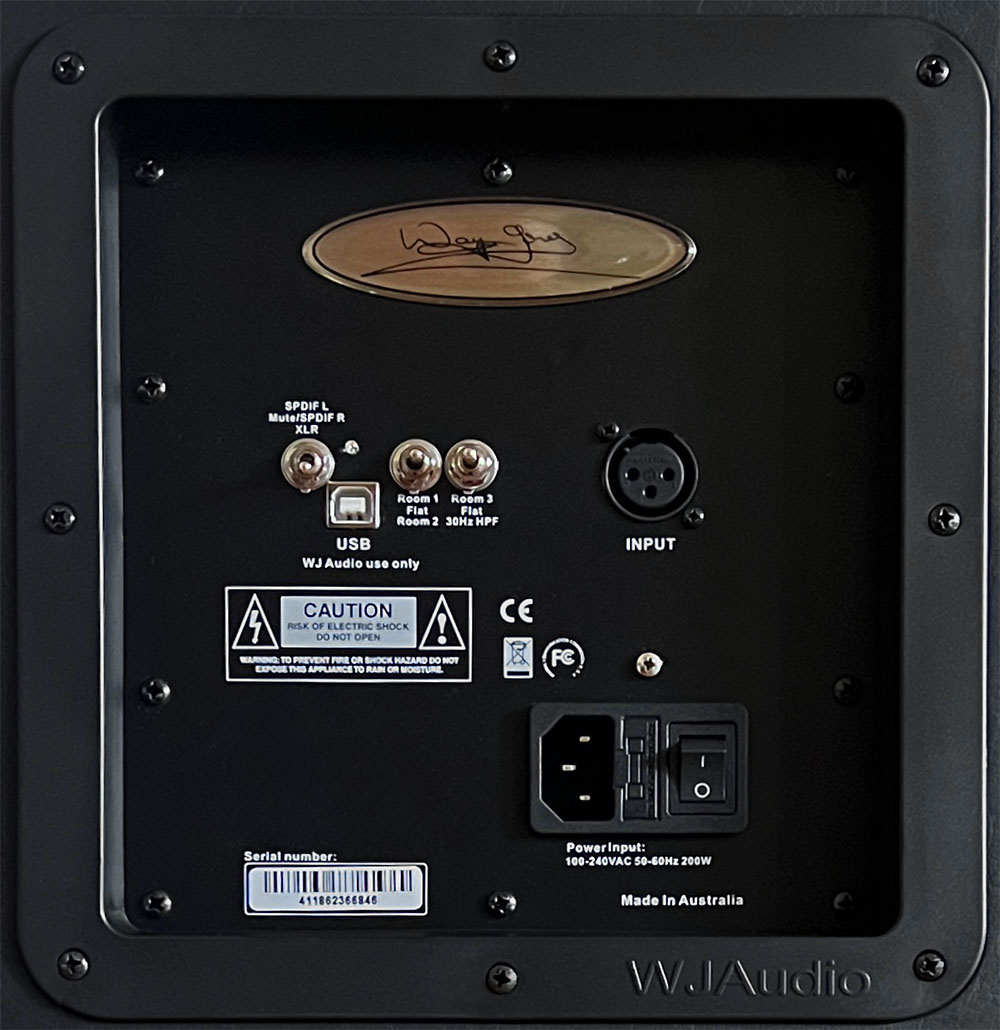

DSP & Control Plate Features

  • Inputs: XLR Analogue Balanced
  • DSP – 192K SHARC processing
  • USB connector for SoundID Reference calibration file uploads
  • 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
    • Inputs: XLR Analogue (center position mutes monitor)
    • Room 1: Inactive. For future development /
      Room 2: SoundID Reference calibration (preloaded with test profile)
    • Room 3: Inactive. For future development /
      30Hz HPF
  • LED on Control Panel for power operation

Dimensions

  • H 46cm W33cm D51cm
  • Weight
  • Active   19kg

Visit Wayne Jones Audio for more Details, Reviews & Photos ►

Additional information

Weight 19 kg
Dimensions 51 × 40 × 57 cm
Shipping

Shipping costs are calculated on the Checkout page.

N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees.

Products shipped from Melbourne, Australia.

Packaged for shipping:
Shipping Dimensions: 51 × 40 × 57 cm (20.08 x 15.8 x 22.5 in)
Shipping Weight: 19 Kg (42 lb)

International shipping is by DHL

As these are custom & hand made in Australia there may be a wait time of up to 8 weeks from time of order.

Covering

Vinyl

Warranty

Warranty is 3 year limited on all parts & Labour
