**The Wayne Jones Audio One Click SoundID Reference Upload App**
Sonarworks' SoundID Reference profile can now be stored directly within Wayne Jones Audio Studio MonitorsSend stereo and multichannel bin files directly, via Ethernet, into WJA Studio Monitors with just one click. Including time alignment and gain. With continuity of dynamics, spatial  dimension, eq and phase. Suitable for 2.0 right through to 9.1.6 multichannel bin files. (read more)
custom colors available

USD $5,987.00 (exc. Tax)

“When you just want to go a little lower, 19Hz in fact.”

  • 1000 Watts, Down Facing Speaker, 19Hz to 150Hz +/-3dB
  • Selectable 80Hz/50Hz Crossover points
  • SoundID Reference from Sonarworks calibration profile upload capability
  • Stunning 2 Pak Graphite Matte Clear finish (custom colours on request)

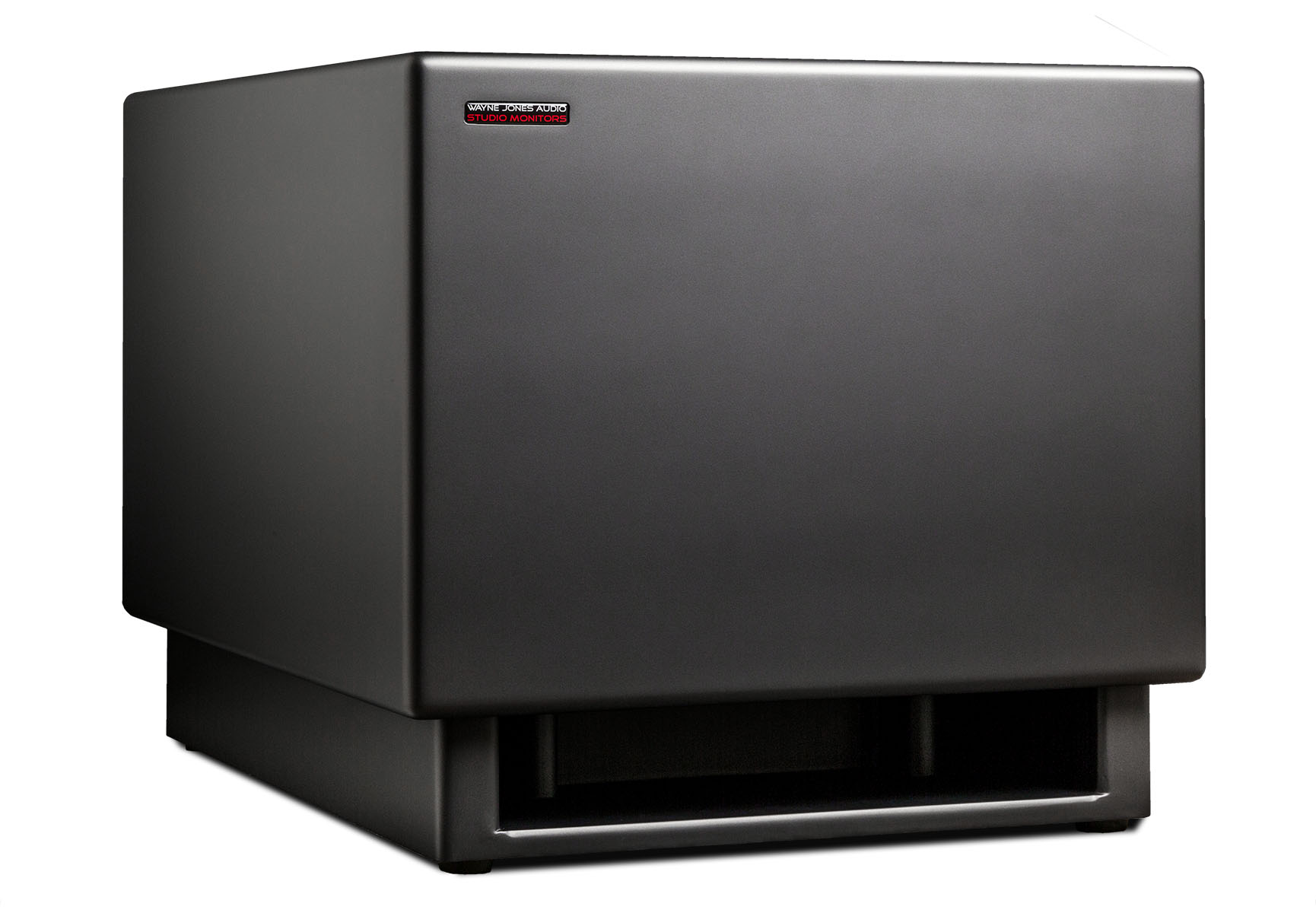

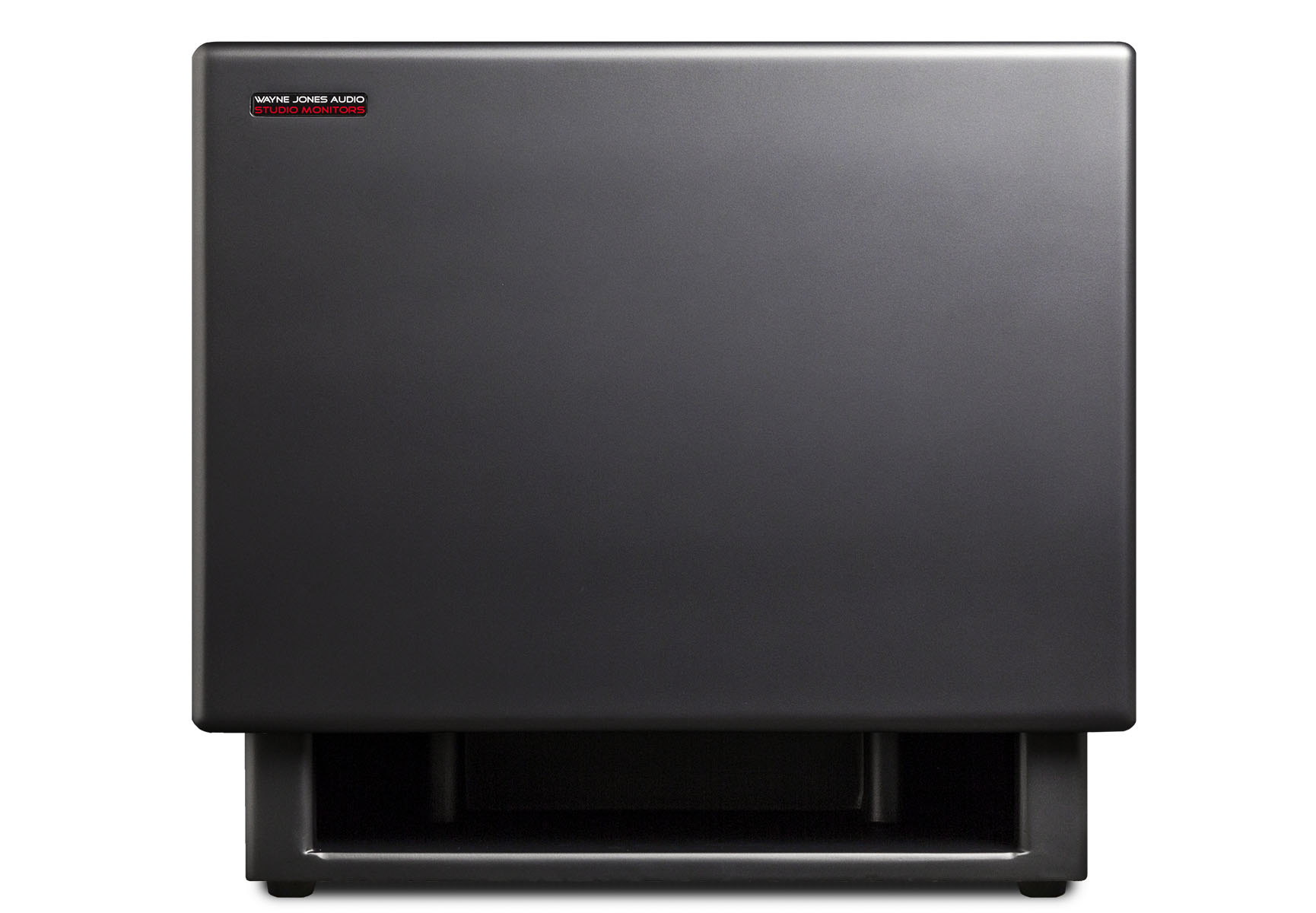

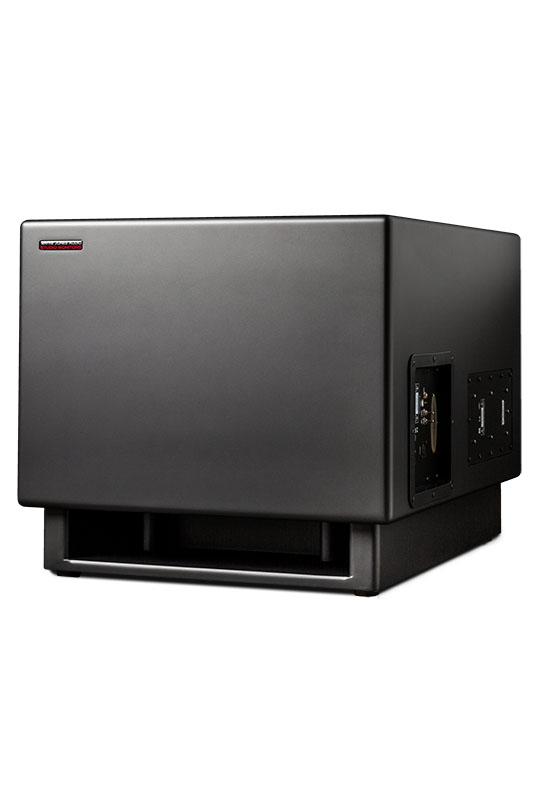

With industry from around the world recognizing and awarding the incredible detail and accuracy of the current Wayne Jones Audio studio monitor range, you can now experience the same with the addition of the Wayne Jones Audio 1×15” Downward Facing Subwoofer.

Visit Wayne Jones Audio for more Details, Reviews & Photos ►

-

SKU: 1865 Category:

Description

Cabinet Specifications

  • Finish – Stunning 2 Pak Graphite Automotive paint finish with Matte clear coat
  • Available in custom colors. Match your décor, order your preferred color
  • Construction – 25 mm MDF
  • Power: 1000 Watts RMS @ 8 ohms
  • Power Amp: State of the art D Class switch mode power amp with heat sink plate mounted into the side of the cabinet
  • Frequency response 19 Hz to 150 Hz +/- 3dB
  • Crossover points: Selectable LPF switch 80Hz or 50Hz (custom options available)
  • 19 Hz HPF
  • Driver: Custom made 15” driver with Aluminium cast frames, specially formulated Kevlar impregnated eucalyptus pulp cone
  • Voice coil: 76mm / 3 inches
  • Magnet: Massive Ferrite
  • Control plate: Black Steel
  • Universal Mains Power in: Standard IEC

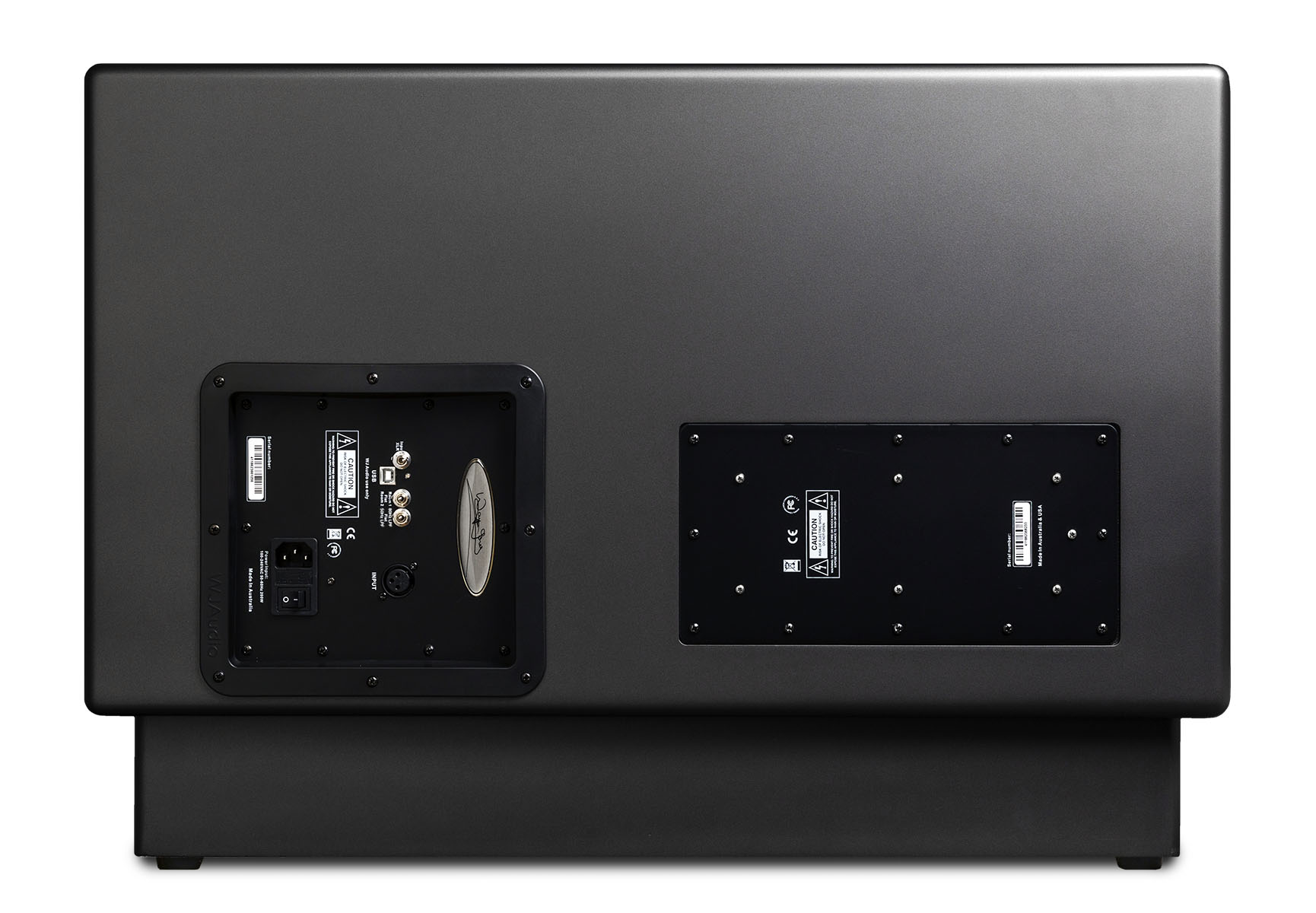

DSP & Control Plate Features

  • Inputs: XLR Analogue Balanced
  • DSP – 192K SHARC processing
  • USB connector for WJ Audio use only. Used for software updates
  • Ethernet connection for SoundID Reference calibration file uploads
  • 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
    • Inputs: XLR Analogue (center position mutes monitor)
    • Room 1: Inactive. For future development /
      Room 2: SoundID Reference calibration (preloaded with test profile)
    • Room 3: Inactive. For future development /
      30Hz HPF
  • LED on Control Panel for power operation

Single Monitor Dimensions:

  • H52 x W45.8 x D75 cm
  • H20.4 x W18.1 x D29.6 inches

Single Monitor Weight:

  • 60 kg
  • 132 lbs

Shipping Dimensions & Weights:
Shipped as a pair on a 1/2 size pallet (included in shipping weight & dimensions)

  • W70 x H90 x D73 cm
  • W27.6 x H35.5 x D28.8 inches
  • 72 kg
  • 158.8 lbs

Visit Wayne Jones Audio for more Details, Reviews & Photos ►

Additional information

Weight 74 kg
Dimensions 90 × 70 × 73 cm
Shipping

Above dimensions and weight are shipping measurements for a single subwoofer. (including shipping pallet).

Dimensions include shipping pallet. Shipping costs are calculated on the Checkout page.

N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees.

Products shipped from Melbourne, Australia.

Shipped as one subwoofer on a pallet (included in shipping weight & dimensions)
Shipping Dimensions: W70 x H590 x D73 cm (W27.6 x H35.5 x D28.8 inches)
Shipping Weight: 72 kg (158.8 lbs)

International shipping is by DHL

As these are custom & hand made in Australia there may be a wait time of up to 8 weeks from time of order.

Color

Graphite

Warranty

Warranty is 3 year limited on all parts & Labour
